frp介绍

Github仓库：https://github.com/fatedier/frp

中文文档：简单、高效的内网穿透工具

frp配置文件

这是frp服务端和客户端的配置文件的全部内容。

frpc_full_example.toml

来源：frpc_full_example

# This configuration file is for reference only. Please do not use this configuration directly to run the program as it may have various issues.

# your proxy name will be changed to {user}.{proxy}
user = "your_name"

# A literal address or host name for IPv6 must be enclosed
# in square brackets, as in "[::1]:80", "[ipv6-host]:http" or "[ipv6-host%zone]:80"
# For single serverAddr field, no need square brackets, like serverAddr = "::".
serverAddr = "0.0.0.0"
serverPort = 7000

# STUN server to help penetrate NAT hole.
# natHoleStunServer = "stun.easyvoip.com:3478"

# Decide if exit program when first login failed, otherwise continuous relogin to frps
# default is true
loginFailExit = true

# console or real logFile path like ./frpc.log
log.to = "./frpc.log"
# trace, debug, info, warn, error
log.level = "info"
log.maxDays = 3
# disable log colors when log.to is console, default is false
log.disablePrintColor = false

auth.method = "token"
# auth.additionalScopes specifies additional scopes to include authentication information.
# Optional values are HeartBeats, NewWorkConns.
# auth.additionalScopes = ["HeartBeats", "NewWorkConns"]

# auth token
auth.token = "12345678"

# oidc.clientID specifies the client ID to use to get a token in OIDC authentication.
# auth.oidc.clientID = ""
# oidc.clientSecret specifies the client secret to use to get a token in OIDC authentication.
# auth.oidc.clientSecret = ""
# oidc.audience specifies the audience of the token in OIDC authentication.
# auth.oidc.audience = ""
# oidc.scope specifies the permissions of the token in OIDC authentication if AuthenticationMethod == "oidc". By default, this value is "".
# auth.oidc.scope = ""
# oidc.tokenEndpointURL specifies the URL which implements OIDC Token Endpoint.
# It will be used to get an OIDC token.
# auth.oidc.tokenEndpointURL = ""

# oidc.additionalEndpointParams specifies additional parameters to be sent to the OIDC Token Endpoint.
# For example, if you want to specify the "audience" parameter, you can set as follow.
# frp will add "audience=<value>" "var1=<value>" to the additional parameters.
# auth.oidc.additionalEndpointParams.audience = "https://dev.auth.com/api/v2/"
# auth.oidc.additionalEndpointParams.var1 = "foobar"

# Set admin address for control frpc's action by http api such as reload
webServer.addr = "127.0.0.1"
webServer.port = 7400
webServer.user = "admin"
webServer.password = "admin"
# Admin assets directory. By default, these assets are bundled with frpc.
# webServer.assetsDir = "./static"

# Enable golang pprof handlers in admin listener.
webServer.pprofEnable = false

# The maximum amount of time a dial to server will wait for a connect to complete. Default value is 10 seconds.
# transport.dialServerTimeout = 10

# dialServerKeepalive specifies the interval between keep-alive probes for an active network connection between frpc and frps.
# If negative, keep-alive probes are disabled.
# transport.dialServerKeepalive = 7200

# connections will be established in advance, default value is zero
transport.poolCount = 5

# If tcp stream multiplexing is used, default is true, it must be same with frps
# transport.tcpMux = true

# Specify keep alive interval for tcp mux.
# only valid if tcpMux is enabled.
# transport.tcpMuxKeepaliveInterval = 30

# Communication protocol used to connect to server
# supports tcp, kcp, quic, websocket and wss now, default is tcp
transport.protocol = "tcp"

# set client binding ip when connect server, default is empty.
# only when protocol = tcp or websocket, the value will be used.
transport.connectServerLocalIP = "0.0.0.0"

# if you want to connect frps by http proxy or socks5 proxy or ntlm proxy, you can set proxyURL here or in global environment variables
# it only works when protocol is tcp
# transport.proxyURL = "http://user:passwd@192.168.1.128:8080"
# transport.proxyURL = "socks5://user:passwd@192.168.1.128:1080"
# transport.proxyURL = "ntlm://user:passwd@192.168.1.128:2080"

# quic protocol options
# transport.quic.keepalivePeriod = 10
# transport.quic.maxIdleTimeout = 30
# transport.quic.maxIncomingStreams = 100000

# If tls.enable is true, frpc will connect frps by tls.
# Since v0.50.0, the default value has been changed to true, and tls is enabled by default.
transport.tls.enable = true

# transport.tls.certFile = "client.crt"
# transport.tls.keyFile = "client.key"
# transport.tls.trustedCaFile = "ca.crt"
# transport.tls.serverName = "example.com"

# If the disableCustomTLSFirstByte is set to false, frpc will establish a connection with frps using the
# first custom byte when tls is enabled.
# Since v0.50.0, the default value has been changed to true, and the first custom byte is disabled by default.
# transport.tls.disableCustomTLSFirstByte = true

# Heartbeat configure, it's not recommended to modify the default value.
# The default value of heartbeatInterval is 10 and heartbeatTimeout is 90. Set negative value
# to disable it.
# transport.heartbeatInterval = 30
# transport.heartbeatTimeout = 90

# Specify a dns server, so frpc will use this instead of default one
# dnsServer = "8.8.8.8"

# Proxy names you want to start.
# Default is empty, means all proxies.
# start = ["ssh", "dns"]

# Specify udp packet size, unit is byte. If not set, the default value is 1500.
# This parameter should be same between client and server.
# It affects the udp and sudp proxy.
udpPacketSize = 1500

# Additional metadatas for client.
metadatas.var1 = "abc"
metadatas.var2 = "123"

# Include other config files for proxies.
# includes = ["./confd/*.ini"]

[[proxies]]
# 'ssh' is the unique proxy name
# If global user is not empty, it will be changed to {user}.{proxy} such as 'your_name.ssh'
name = "ssh"
type = "tcp"
localIP = "127.0.0.1"
localPort = 22
# Limit bandwidth for this proxy, unit is KB and MB
transport.bandwidthLimit = "1MB"
# Where to limit bandwidth, can be 'client' or 'server', default is 'client'
transport.bandwidthLimitMode = "client"
# If true, traffic of this proxy will be encrypted, default is false
transport.useEncryption = false
# If true, traffic will be compressed
transport.useCompression = false
# Remote port listen by frps
remotePort = 6001
# frps will load balancing connections for proxies in same group
loadBalancer.group = "test_group"
# group should have same group key
loadBalancer.groupKey = "123456"
# Enable health check for the backend service, it supports 'tcp' and 'http' now.
# frpc will connect local service's port to detect it's healthy status
healthCheck.type = "tcp"
# Health check connection timeout
healthCheck.timeoutSeconds = 3
# If continuous failed in 3 times, the proxy will be removed from frps
healthCheck.maxFailed = 3
# Every 10 seconds will do a health check
healthCheck.intervalSeconds = 10
# Additional meta info for each proxy. It will be passed to the server-side plugin for use.
metadatas.var1 = "abc"
metadatas.var2 = "123"
# You can add some extra information to the proxy through annotations.
# These annotations will be displayed on the frps dashboard.
[proxies.annotations]
key1 = "value1"
"prefix/key2" = "value2"

[[proxies]]
name = "ssh_random"
type = "tcp"
localIP = "192.168.31.100"
localPort = 22
# If remotePort is 0, frps will assign a random port for you
remotePort = 0

[[proxies]]
name = "dns"
type = "udp"
localIP = "114.114.114.114"
localPort = 53
remotePort = 6002

# Resolve your domain names to [serverAddr] so you can use http://web01.yourdomain.com to browse web01 and http://web02.yourdomain.com to browse web02
[[proxies]]
name = "web01"
type = "http"
localIP = "127.0.0.1"
localPort = 80
# http username and password are safety certification for http protocol
# if not set, you can access this customDomains without certification
httpUser = "admin"
httpPassword = "admin"
# if domain for frps is frps.com, then you can access [web01] proxy by URL http://web01.frps.com
subdomain = "web01"
customDomains = ["web01.yourdomain.com"]
# locations is only available for http type
locations = ["/", "/pic"]
# route requests to this service if http basic auto user is abc
# routeByHTTPUser = abc
hostHeaderRewrite = "example.com"
requestHeaders.set.x-from-where = "frp"
responseHeaders.set.foo = "bar"
healthCheck.type = "http"
# frpc will send a GET http request '/status' to local http service
# http service is alive when it return 2xx http response code
healthCheck.path = "/status"
healthCheck.intervalSeconds = 10
healthCheck.maxFailed = 3
healthCheck.timeoutSeconds = 3
# set health check headers
healthCheck.httpHeaders=[
    { name = "x-from-where", value = "frp" }
]

[[proxies]]
name = "web02"
type = "https"
localIP = "127.0.0.1"
localPort = 8000
subdomain = "web02"
customDomains = ["web02.yourdomain.com"]
# if not empty, frpc will use proxy protocol to transfer connection info to your local service
# v1 or v2 or empty
transport.proxyProtocolVersion = "v2"

[[proxies]]
name = "tcpmuxhttpconnect"
type = "tcpmux"
multiplexer = "httpconnect"
localIP = "127.0.0.1"
localPort = 10701
customDomains = ["tunnel1"]
# routeByHTTPUser = "user1"

[[proxies]]
name = "plugin_unix_domain_socket"
type = "tcp"
remotePort = 6003
# if plugin is defined, localIP and localPort is useless
# plugin will handle connections got from frps
[proxies.plugin]
type = "unix_domain_socket"
unixPath = "/var/run/docker.sock"

[[proxies]]
name = "plugin_http_proxy"
type = "tcp"
remotePort = 6004
[proxies.plugin]
type = "http_proxy"
httpUser = "abc"
httpPassword = "abc"

[[proxies]]
name = "plugin_socks5"
type = "tcp"
remotePort = 6005
[proxies.plugin]
type = "socks5"
username = "abc"
password = "abc"

[[proxies]]
name = "plugin_static_file"
type = "tcp"
remotePort = 6006
[proxies.plugin]
type = "static_file"
localPath = "/var/www/blog"
stripPrefix = "static"
httpUser = "abc"
httpPassword = "abc"

[[proxies]]
name = "plugin_https2http"
type = "https"
customDomains = ["test.yourdomain.com"]
[proxies.plugin]
type = "https2http"
localAddr = "127.0.0.1:80"
crtPath = "./server.crt"
keyPath = "./server.key"
hostHeaderRewrite = "127.0.0.1"
requestHeaders.set.x-from-where = "frp"

[[proxies]]
name = "plugin_https2https"
type = "https"
customDomains = ["test.yourdomain.com"]
[proxies.plugin]
type = "https2https"
localAddr = "127.0.0.1:443"
crtPath = "./server.crt"
keyPath = "./server.key"
hostHeaderRewrite = "127.0.0.1"
requestHeaders.set.x-from-where = "frp"

[[proxies]]
name = "plugin_http2https"
type = "http"
customDomains = ["test.yourdomain.com"]
[proxies.plugin]
type = "http2https"
localAddr = "127.0.0.1:443"
hostHeaderRewrite = "127.0.0.1"
requestHeaders.set.x-from-where = "frp"

[[proxies]]
name = "plugin_http2http"
type = "tcp"
remotePort = 6007
[proxies.plugin]
type = "http2http"
localAddr = "127.0.0.1:80"
hostHeaderRewrite = "127.0.0.1"
requestHeaders.set.x-from-where = "frp"

[[proxies]]
name = "secret_tcp"
# If the type is secret tcp, remotePort is useless
# Who want to connect local port should deploy another frpc with stcp proxy and role is visitor
type = "stcp"
# secretKey is used for authentication for visitors
secretKey = "abcdefg"
localIP = "127.0.0.1"
localPort = 22
# If not empty, only visitors from specified users can connect.
# Otherwise, visitors from same user can connect. '*' means allow all users.
allowUsers = ["*"]

[[proxies]]
name = "p2p_tcp"
type = "xtcp"
secretKey = "abcdefg"
localIP = "127.0.0.1"
localPort = 22
# If not empty, only visitors from specified users can connect.
# Otherwise, visitors from same user can connect. '*' means allow all users.
allowUsers = ["user1", "user2"]

# frpc role visitor -> frps -> frpc role server
[[visitors]]
name = "secret_tcp_visitor"
type = "stcp"
# the server name you want to visitor
serverName = "secret_tcp"
secretKey = "abcdefg"
# connect this address to visitor stcp server
bindAddr = "127.0.0.1"
# bindPort can be less than 0, it means don't bind to the port and only receive connections redirected from
# other visitors. (This is not supported for SUDP now)
bindPort = 9000

[[visitors]]
name = "p2p_tcp_visitor"
type = "xtcp"
# if the server user is not set, it defaults to the current user
serverUser = "user1"
serverName = "p2p_tcp"
secretKey = "abcdefg"
bindAddr = "127.0.0.1"
# bindPort can be less than 0, it means don't bind to the port and only receive connections redirected from
# other visitors. (This is not supported for SUDP now)
bindPort = 9001
# when automatic tunnel persistence is required, set it to true
keepTunnelOpen = false
# effective when keepTunnelOpen is set to true, the number of attempts to punch through per hour
maxRetriesAnHour = 8
minRetryInterval = 90
# fallbackTo = "stcp_visitor"
# fallbackTimeoutMs = 500

frps_full_example.toml

来源：frps_full_example

# This configuration file is for reference only. Please do not use this configuration directly to run the program as it may have various issues.

# A literal address or host name for IPv6 must be enclosed
# in square brackets, as in "[::1]:80", "[ipv6-host]:http" or "[ipv6-host%zone]:80"
# For single "bindAddr" field, no need square brackets, like `bindAddr = "::"`.
bindAddr = "0.0.0.0"
bindPort = 7000

# udp port used for kcp protocol, it can be same with 'bindPort'.
# if not set, kcp is disabled in frps.
kcpBindPort = 7000

# udp port used for quic protocol.
# if not set, quic is disabled in frps.
# quicBindPort = 7002

# Specify which address proxy will listen for, default value is same with bindAddr
# proxyBindAddr = "127.0.0.1"

# quic protocol options
# transport.quic.keepalivePeriod = 10
# transport.quic.maxIdleTimeout = 30
# transport.quic.maxIncomingStreams = 100000

# Heartbeat configure, it's not recommended to modify the default value
# The default value of heartbeatTimeout is 90. Set negative value to disable it.
# transport.heartbeatTimeout = 90

# Pool count in each proxy will keep no more than maxPoolCount.
transport.maxPoolCount = 5

# If tcp stream multiplexing is used, default is true
# transport.tcpMux = true

# Specify keep alive interval for tcp mux.
# only valid if tcpMux is true.
# transport.tcpMuxKeepaliveInterval = 30

# tcpKeepalive specifies the interval between keep-alive probes for an active network connection between frpc and frps.
# If negative, keep-alive probes are disabled.
# transport.tcpKeepalive = 7200

# transport.tls.force specifies whether to only accept TLS-encrypted connections. By default, the value is false.
transport.tls.force = false

# transport.tls.certFile = "server.crt"
# transport.tls.keyFile = "server.key"
# transport.tls.trustedCaFile = "ca.crt"

# If you want to support virtual host, you must set the http port for listening (optional)
# Note: http port and https port can be same with bindPort
vhostHTTPPort = 80
vhostHTTPSPort = 443

# Response header timeout(seconds) for vhost http server, default is 60s
# vhostHTTPTimeout = 60

# tcpmuxHTTPConnectPort specifies the port that the server listens for TCP
# HTTP CONNECT requests. If the value is 0, the server will not multiplex TCP
# requests on one single port. If it's not - it will listen on this value for
# HTTP CONNECT requests. By default, this value is 0.
# tcpmuxHTTPConnectPort = 1337

# If tcpmuxPassthrough is true, frps won't do any update on traffic.
# tcpmuxPassthrough = false

# Configure the web server to enable the dashboard for frps.
# dashboard is available only if webServer.port is set.
webServer.addr = "127.0.0.1"
webServer.port = 7500
webServer.user = "admin"
webServer.password = "admin"
# webServer.tls.certFile = "server.crt"
# webServer.tls.keyFile = "server.key"
# dashboard assets directory(only for debug mode)
# webServer.assetsDir = "./static"

# Enable golang pprof handlers in dashboard listener.
# Dashboard port must be set first
webServer.pprofEnable = false

# enablePrometheus will export prometheus metrics on webServer in /metrics api.
enablePrometheus = true

# console or real logFile path like ./frps.log
log.to = "./frps.log"
# trace, debug, info, warn, error
log.level = "info"
log.maxDays = 3
# disable log colors when log.to is console, default is false
log.disablePrintColor = false

# DetailedErrorsToClient defines whether to send the specific error (with debug info) to frpc. By default, this value is true.
detailedErrorsToClient = true

# auth.method specifies what authentication method to use authenticate frpc with frps.
# If "token" is specified - token will be read into login message.
# If "oidc" is specified - OIDC (Open ID Connect) token will be issued using OIDC settings. By default, this value is "token".
auth.method = "token"

# auth.additionalScopes specifies additional scopes to include authentication information.
# Optional values are HeartBeats, NewWorkConns.
# auth.additionalScopes = ["HeartBeats", "NewWorkConns"]

# auth token
auth.token = "12345678"

# oidc issuer specifies the issuer to verify OIDC tokens with.
auth.oidc.issuer = ""
# oidc audience specifies the audience OIDC tokens should contain when validated.
auth.oidc.audience = ""
# oidc skipExpiryCheck specifies whether to skip checking if the OIDC token is expired.
auth.oidc.skipExpiryCheck = false
# oidc skipIssuerCheck specifies whether to skip checking if the OIDC token's issuer claim matches the issuer specified in OidcIssuer.
auth.oidc.skipIssuerCheck = false

# userConnTimeout specifies the maximum time to wait for a work connection.
# userConnTimeout = 10

# Only allow frpc to bind ports you list. By default, there won't be any limit.
allowPorts = [
  { start = 2000, end = 3000 },
  { single = 3001 },
  { single = 3003 },
  { start = 4000, end = 50000 }
]

# Max ports can be used for each client, default value is 0 means no limit
maxPortsPerClient = 0

# If subDomainHost is not empty, you can set subdomain when type is http or https in frpc's configure file
# When subdomain is test, the host used by routing is test.frps.com
subDomainHost = "frps.com"

# custom 404 page for HTTP requests
# custom404Page = "/path/to/404.html"

# specify udp packet size, unit is byte. If not set, the default value is 1500.
# This parameter should be same between client and server.
# It affects the udp and sudp proxy.
udpPacketSize = 1500

# Retention time for NAT hole punching strategy data.
natholeAnalysisDataReserveHours = 168

# ssh tunnel gateway
# If you want to enable this feature, the bindPort parameter is required, while others are optional.
# By default, this feature is disabled. It will be enabled if bindPort is greater than 0.
# sshTunnelGateway.bindPort = 2200
# sshTunnelGateway.privateKeyFile = "/home/frp-user/.ssh/id_rsa"
# sshTunnelGateway.autoGenPrivateKeyPath = ""
# sshTunnelGateway.authorizedKeysFile = "/home/frp-user/.ssh/authorized_keys"

[[httpPlugins]]
name = "user-manager"
addr = "127.0.0.1:9000"
path = "/handler"
ops = ["Login"]

[[httpPlugins]]
name = "port-manager"
addr = "127.0.0.1:9001"
path = "/handler"
ops = ["NewProxy"]

服务器搭建

• 从Github Releases下载与服务器操作系统匹配的压缩包上传到服务器

• 将压缩包解压

# 切换到压缩包所在目录解压压缩包，或者使用宝塔面板操作
# 解压压缩包命令
tar -xvf frp_0.59.0_linux_amd64.tar.gz

• 编辑服务端配置文件frps.toml

# frps的通信端口 自行设置默认也行
bindPort = 9999
# 与frpc通信的认证方式和token值
auth.method = "token"
auth.token = "igkadfgkadsgfguiaf"

# 面板的端口、账号和密码 端口自行设置默认也行
webServer.addr = "0.0.0.0" #注意该参数
webServer.port = 10000
webServer.user = "test"
webServer.password = "kjgsaflkjfafiuaf"

• 运行frp服务端

# frp服务端文件所在目录运行
./frps -c frps.toml
# 一般会使用 nohup命令，后台运行：
nohup ./frps -c frps.toml &

注意配置防火墙

客户端配置文件

• 编辑客户端配置文件frpc.toml

# frps的地址和通信端口
# serverAddr设置自己的服务器公网IP
serverAddr = "1.1.1.1"
serverPort = 9999
# 与frps通信的认证方式和token值
auth.method = "token"
auth.token = "igkadfgkadsgfguiaf"

# 日志路径
log.to = "frpc.log"
# 日志级别
log.level = "info"
# 日志保存时间
log.maxDays = 3

# Windows远程访问
[[proxies]]
name = "win"
type = "tcp"
localIP = "127.0.0.1"
localPort = 3389
remotePort = 10001

• 运行客户端

# Linux运行命令  frp客户端文件所在目录运行
./frpc -c frpc.toml
## 一般会使用 nohup命令，后台运行：
nohup ./frpc -c frpc.toml &

# Windows运行命令 frp客户端文件所在目录cmd/powershell运行
./frpc.exe -c frpc.toml

远程桌面连接

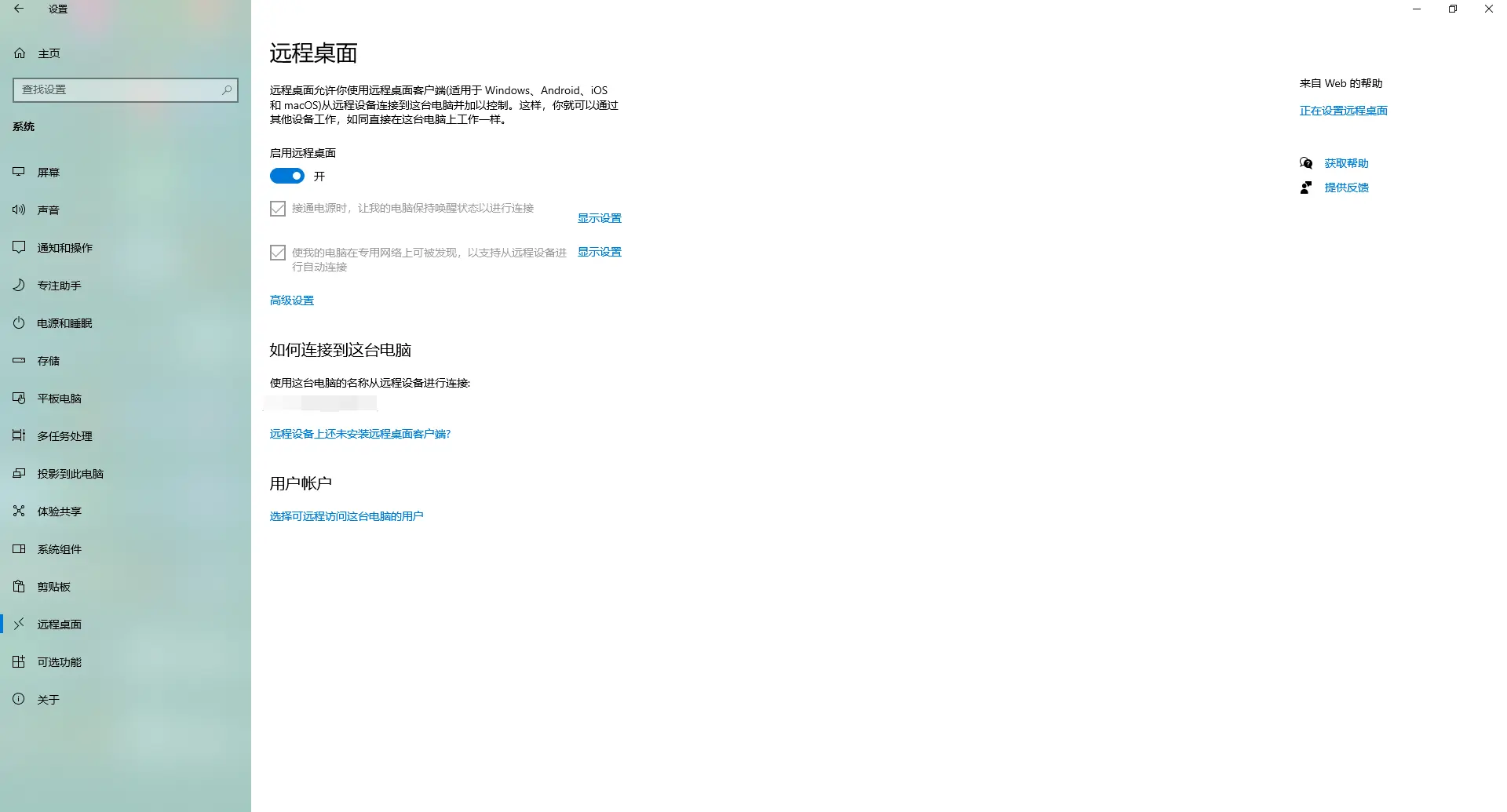

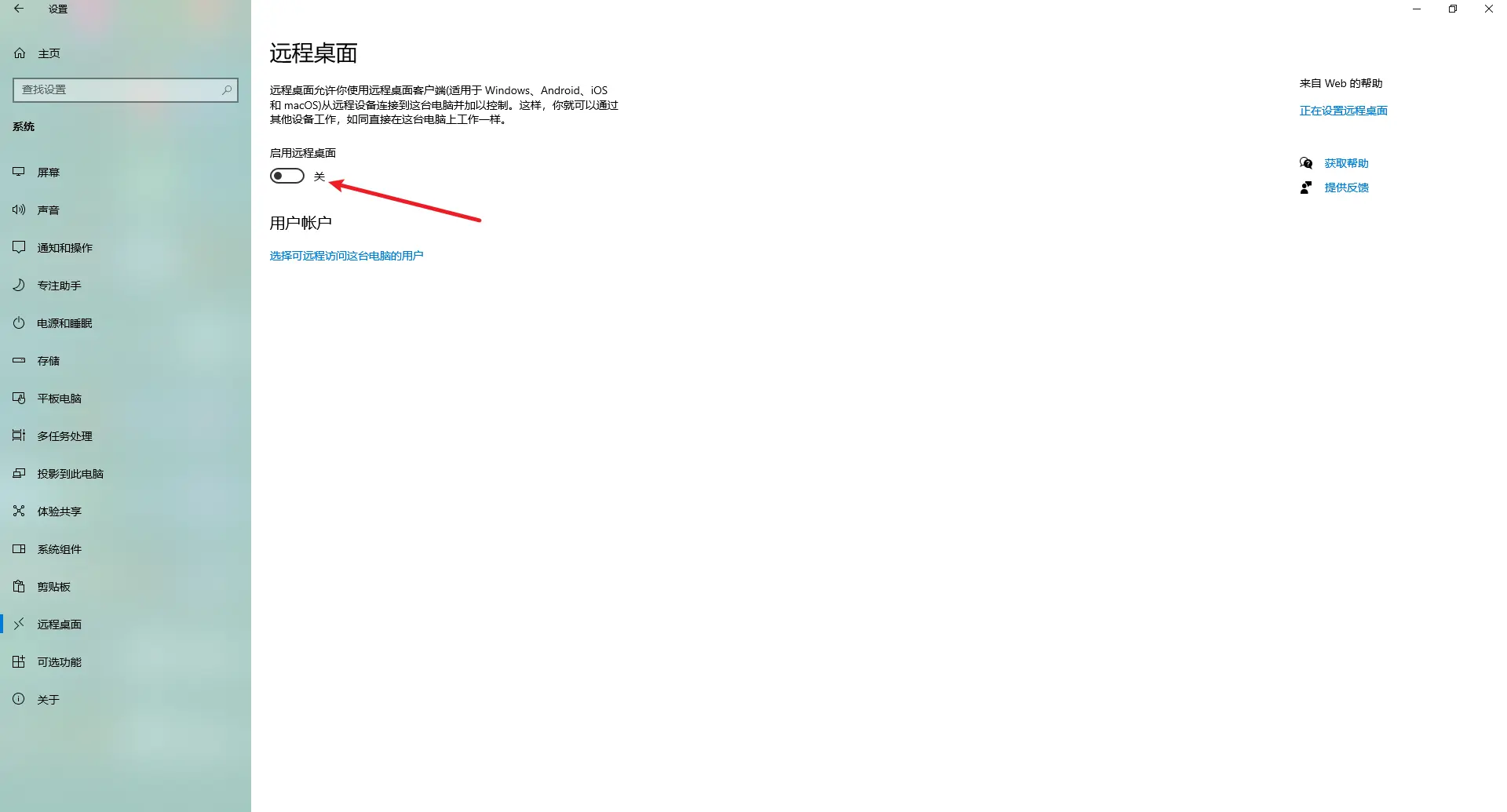

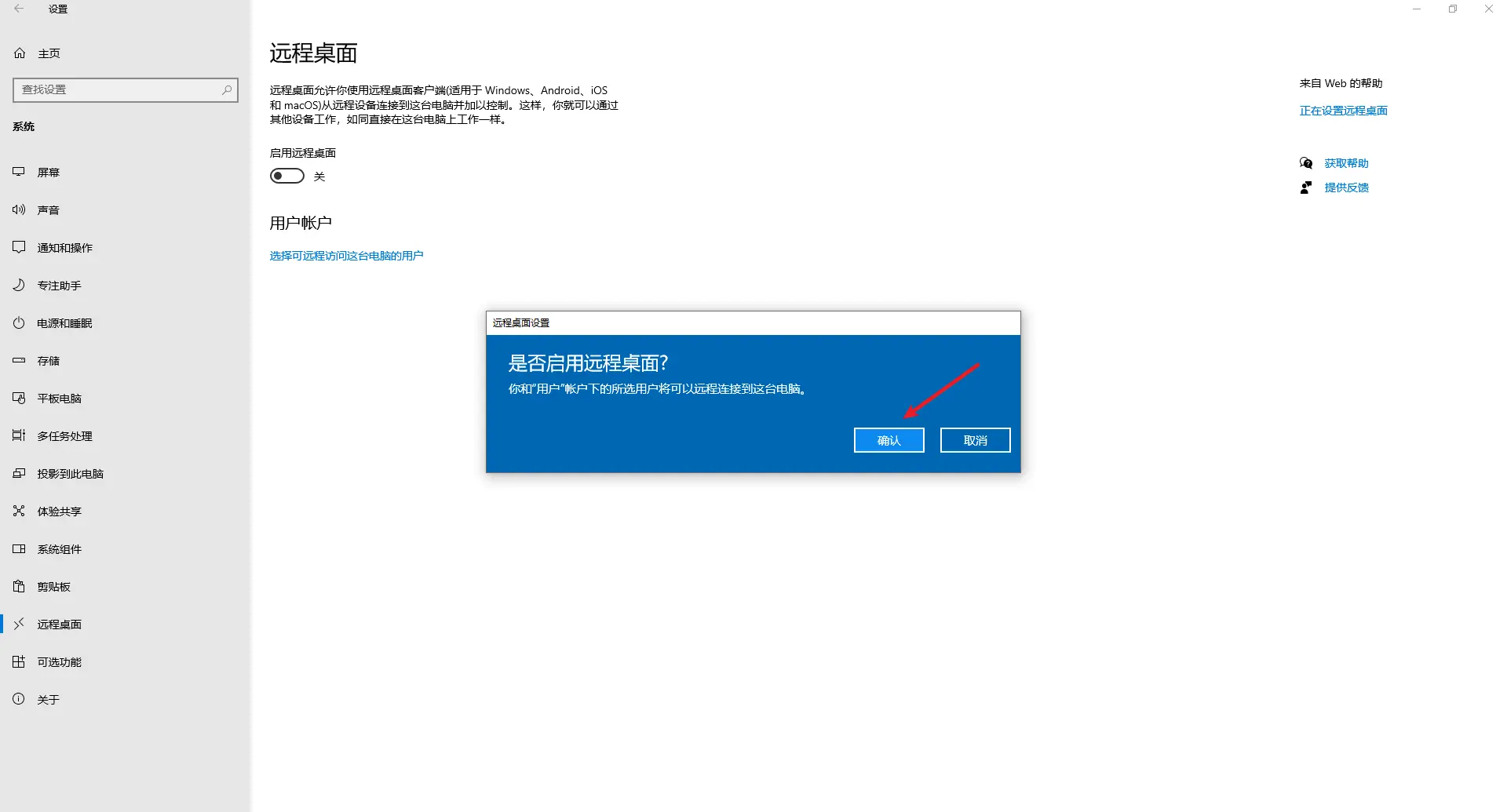

• 在被控电脑的设置-系统-远程桌面中启动远程桌面功能

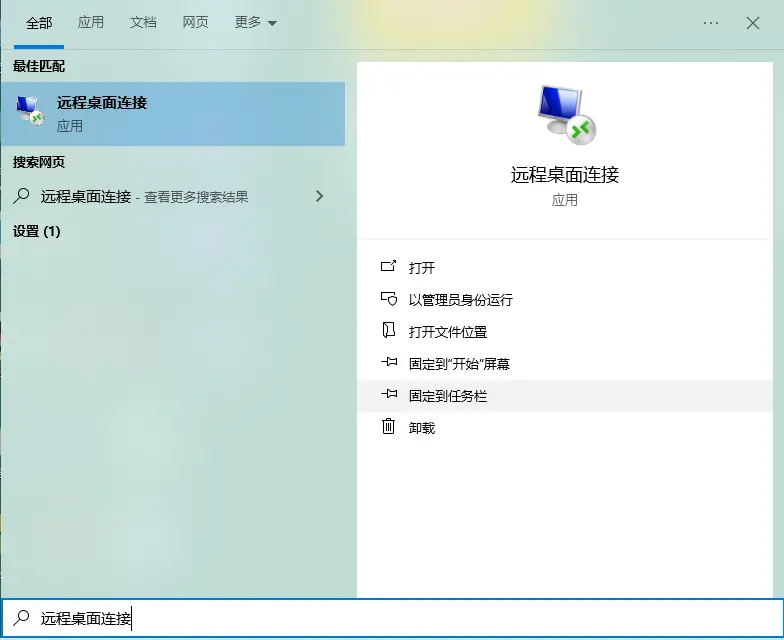

• 在Windows系统搜索栏搜索远程桌面连接

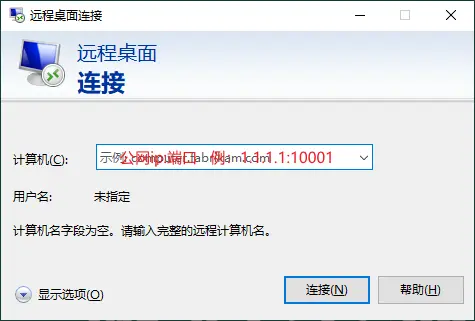

• 输入公网ip加端口

• 在弹出的页面输入用户名和密码

# 密码在Windows设置中自行设置
# 用户名通过如下命令获取 在cmd中运行
echo %username%

幸运的话，就连接成功啦。

systemd 管理 frp 服务

• 如Linux服务端上没有安装 systemd，可以使用 yum 或 apt 等命令安装 systemd

# 使用 yum 安装 systemd（CentOS/RHEL）
yum install systemd

# 使用 apt 安装 systemd（Debian/Ubuntu）
apt install systemd

• 使用文本编辑器 (如 vim) 在 /etc/systemd/system 目录下创建一个 frps.service 文件，用于配置 frps 服务。

sudo vim /etc/systemd/system/frps.service

• 写入内容

[Unit]
# 服务名称，可自定义
Description = frp server
After = network.target syslog.target
Wants = network.target

[Service]
Type = simple
# 启动frps的命令，需修改为您的frps的安装路径
ExecStart = /path/to/frps -c /path/to/frps.toml

[Install]
WantedBy = multi-user.target

• 使用 systemd 命令管理 frps 服务

# 启动frp
sudo systemctl start frps
# 停止frp
sudo systemctl stop frps
# 重启frp
sudo systemctl restart frps
# 查看frp状态
sudo systemctl status frps
# 设置 frps 开机自启动
sudo systemctl enable frps
# 禁用frps（不自启）
sudo systemctl disable frps

Windows将frp注册成系统服务

使用nssm，方法自行搜索。
